Socket P
Intel® Core™ 2 Duo Processor (Merom 65nm with 800MHz) – Soc-P Only
Intel® Celeron® Processor (Merom 65nm with 533MHz) – Soc-P Only

Supported FSB
533 /667/ 800MHz– Soc-P Only

Chipset
Intel® GM965 Express Chipset
Intel® GM965 GMCH
Intel® ICH8M

Main Memory

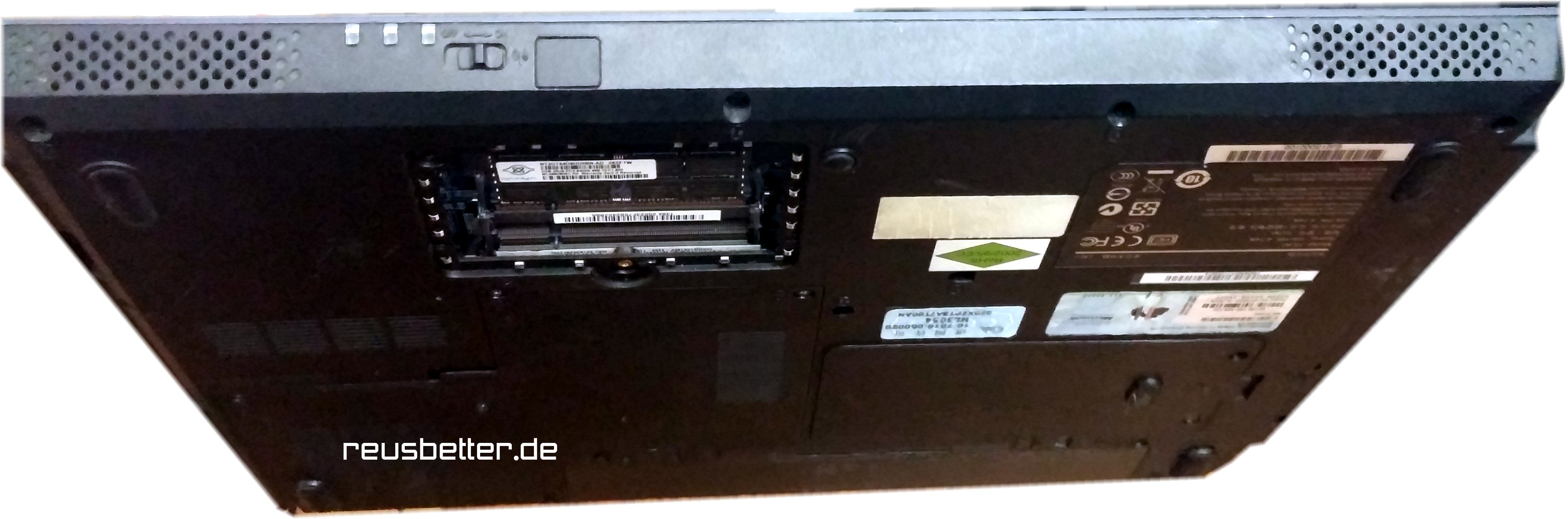

Two (2) DDR2 SO-DIMM connectors
533/667MHz
512MB to maximum 4GB

Support Intel® Turbo Memory
Yes( 2nd Mini Card Slot, support up to 1G)

Display & Graphics

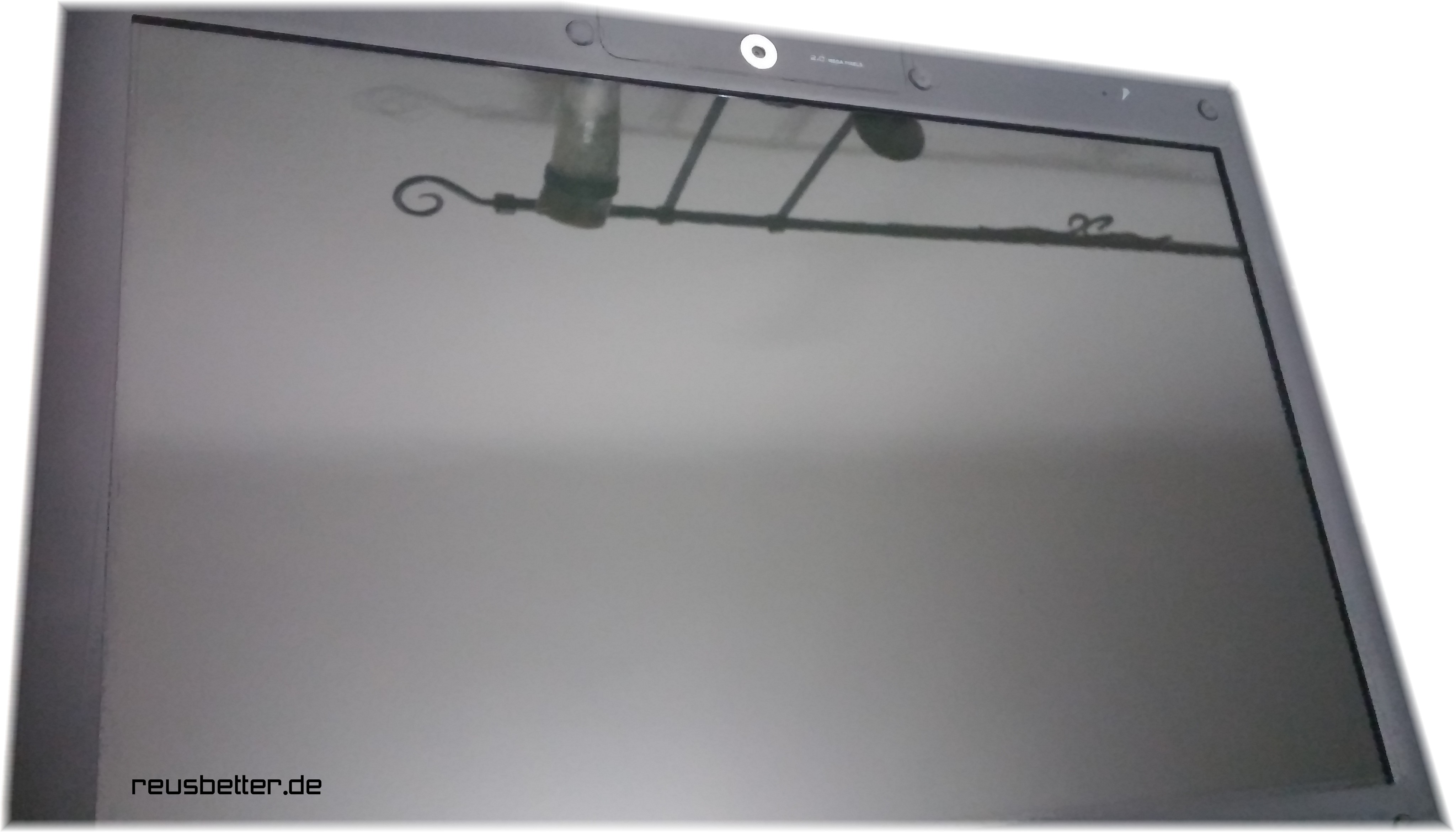

15.4”W WXGA(1280 x 800), Glare
NVIDIA GeForce Go 8600M GT 512MB

BIOS
Phoenix First BIOS

Hard Drive
One 2.5” 9.5mm SATA 3Gbps HDD

Memory Card Reader
3-in-1 Card Reader (SD, MMC, MS, MS Pro)

Express Card Slot
Express Card 34/54mm X 1

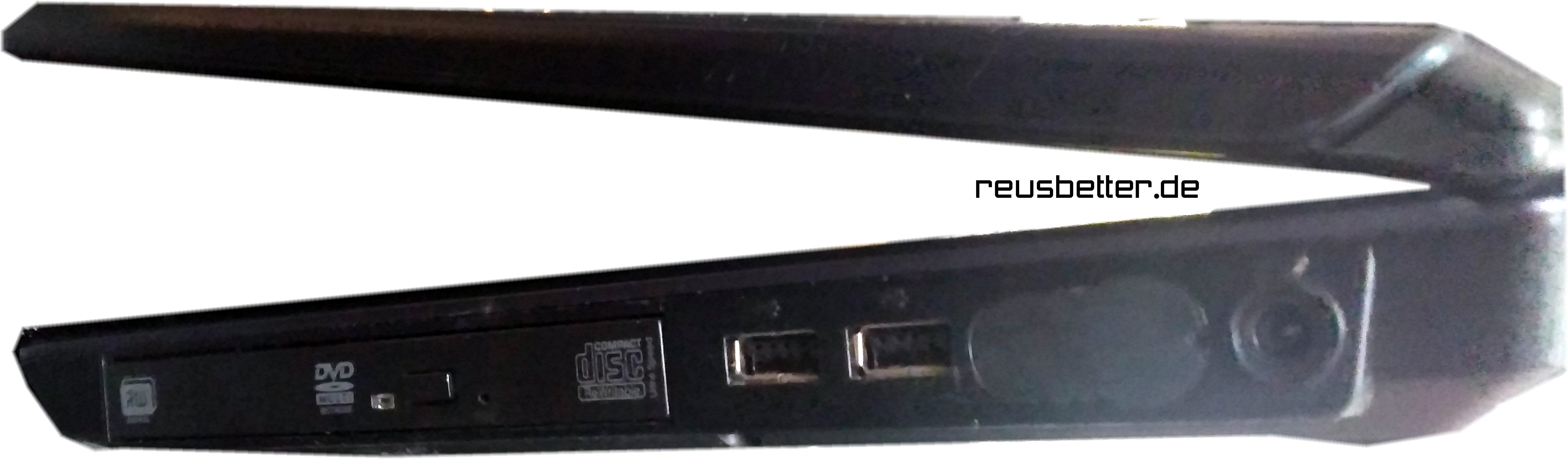

Optical Drive
12.7mm height PATA
Combo(CD-RW/DVD-ROM)
DVD-RAM/-R/-RW readable (Rambo)

Communication
- Modem
- LAN
- WLAN
- Bluetooth
- Camera

Internal Modem with MDC 1.5 solution V.92/56K bps; V.90/56K bps
Broadcom 5786 Gigabit LAN
Optional Intel® Wireless WiFi Link 4965AGN/AG and Intel® PRO/Wireless 3945ABG (Mini-card interface) Three Antennae support
Optional Bluetooth
Camera 2.0 MPixel

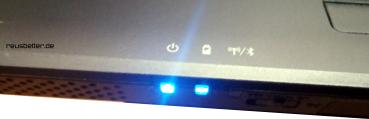

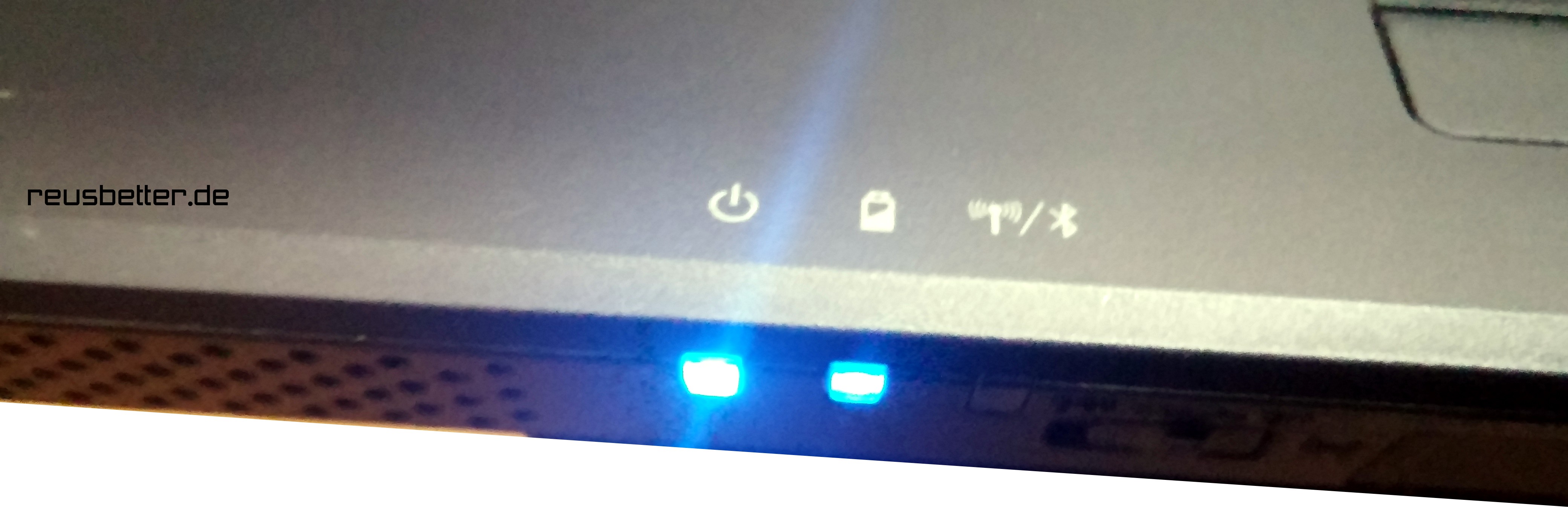

System Status LED
3 K/B indicators: Caps Lock (Blue), and Num Lock (Blue), Scroll Lock (Blue)
1 LED for IDE HDD activity (Blue)
1 LED for System status (Power On / Suspend) (Blue)
1 LED for Battery status (Charging / Full / L1 / L2) (Blue/Amber)
1 LED for Wireless LAN & Bluetooth (Blue/Amber/Purple)
1 LED for Power Button(Blue)
1 LED for Mute(Amber)
1 LED for Power USB on(Amber)

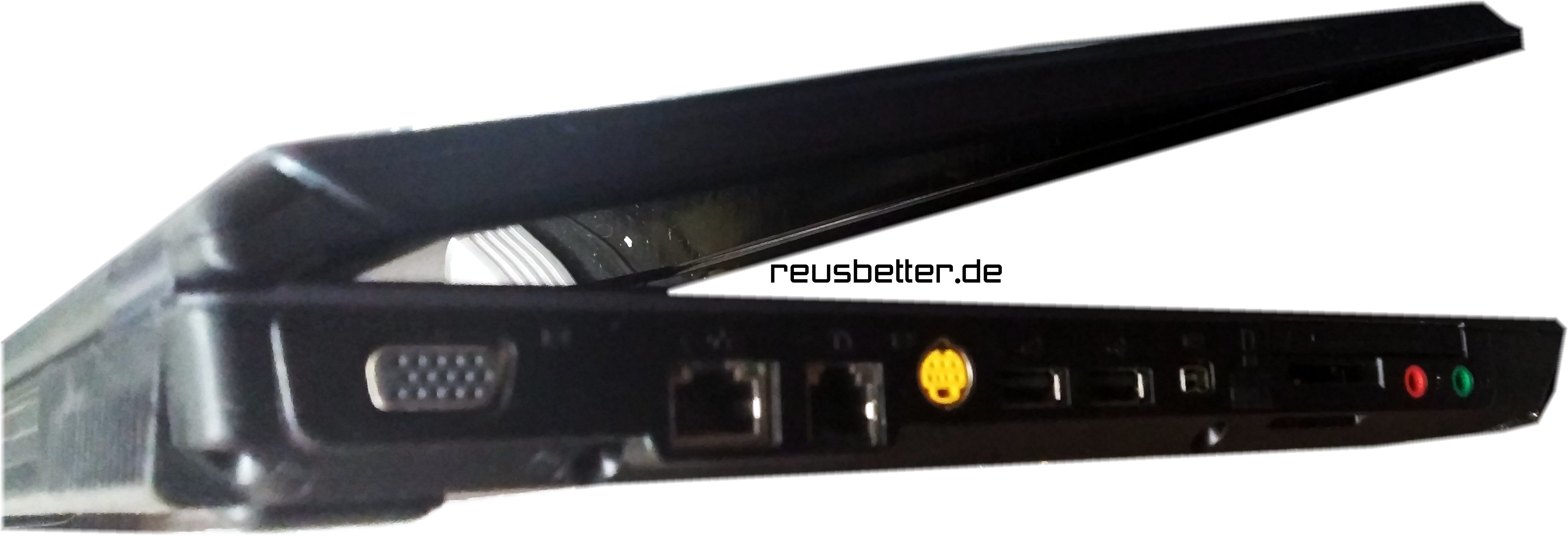

Interface
No port Cover
Hi-Speed USB 2.0 x 2
Power USB x 2 (1A)
RGB; VGA port x 1, 15pins
S-Video out x1
Microphone-in x 1
Headphone-out x 1
DC-in jack x 1
RJ-45 jack x 1
RJ-11 jack x 1
3-in-1 Card Reader x1
1394a x 1
Kensington lock x 1
Fingerprint reader x 1

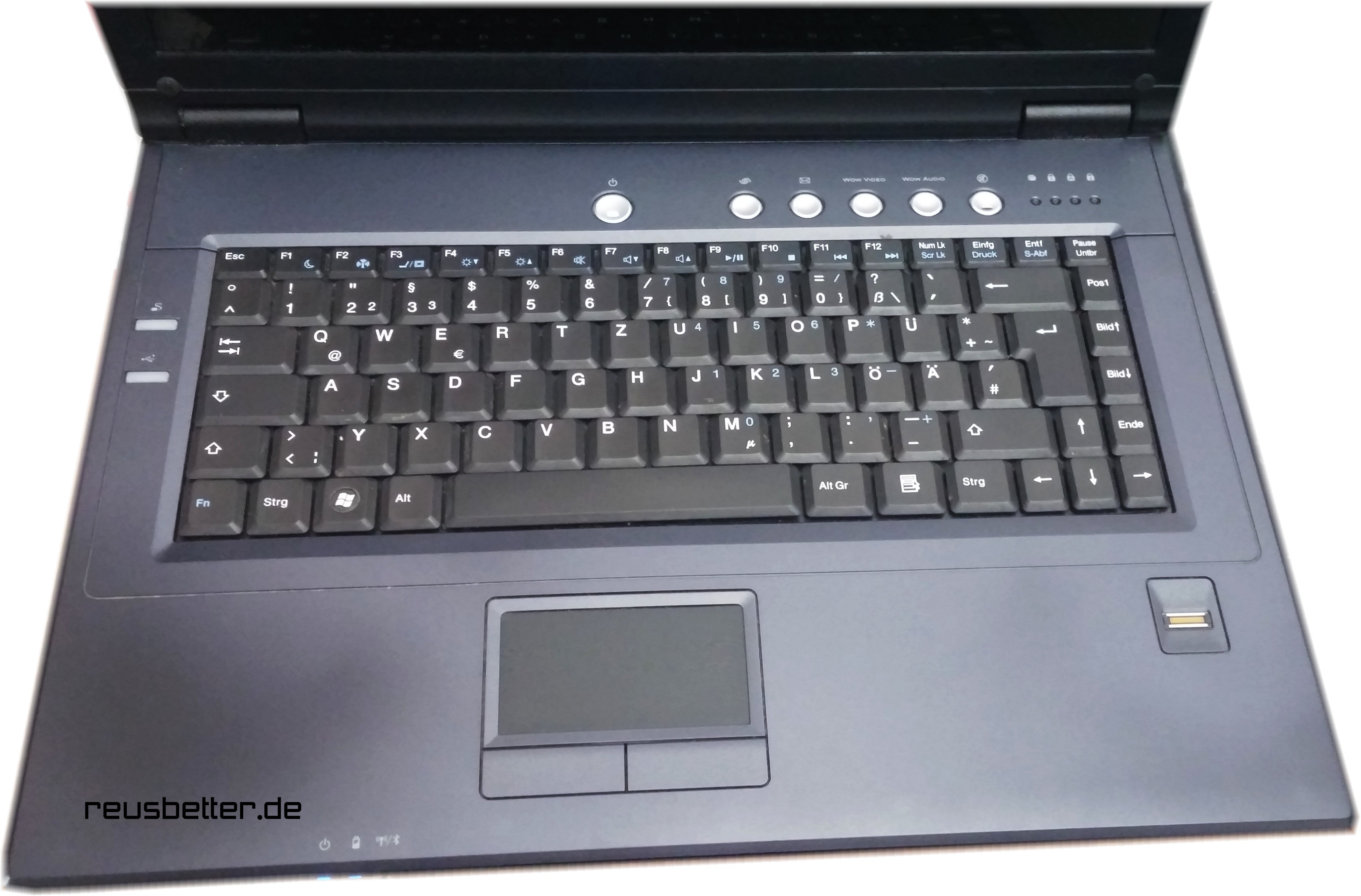

Keyboard

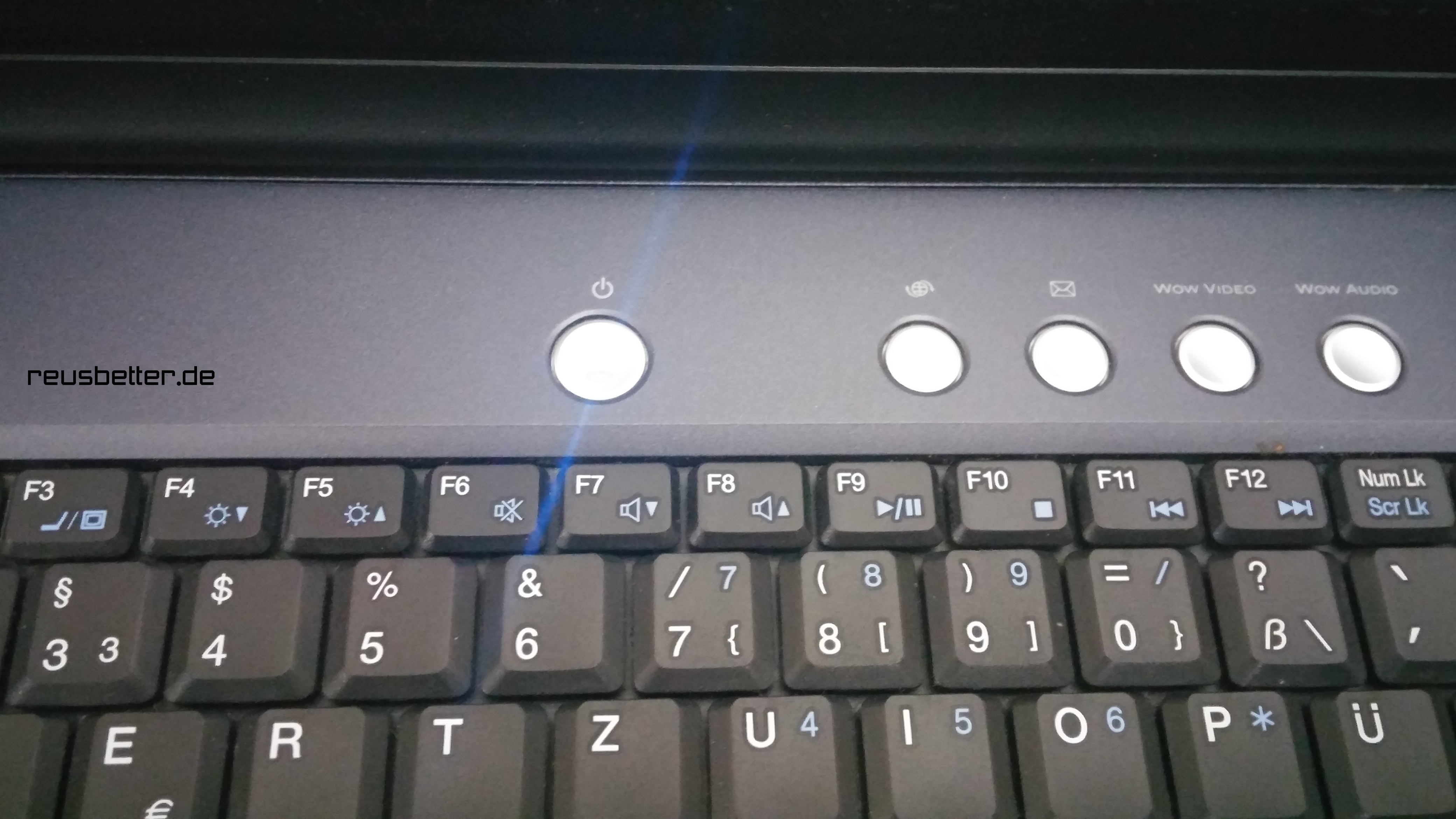

Button & Hot Keys on Keyboard
86 keys support with 101/102 key emulation without stick-point.
Windows key, Application key
Standard pitch, 3.0mm travel length.
Multi-Language support
Power button x 1
Magnetic lid switch control for system standby/wakeup or suspend/resume
Mute button x 1
Control button for short-Cut key functions
1 WWW (Explorer) key
1 E-mail (Outlook) key
Control buttons for Smart Charging
Smart Charging
Control buttons for Power USB
Power USB (Workable in system off mode)

Audio
Realtek ALC268, 2 channel HD Audio
Microphone-in and headphone-out
Two stereo 1.5W speakers

Power Management
ACPI 2.0

Battery Pack & Life
6 cell Li-On, 4800/5200mAh

AC Adapter
Universal AC adapter. 90-264V AC, 47-63HZ
90W with 19V DC

Dimension & Weight
2.7 kg /355mm(W) x 257mm(D)x 35.2mm(H)

Security
HDD Password
Kensington lock

Regulation
EMI: FCC-B, CE, CCC, A,C-Tick, VCCI, BSMI
Safety: Compliant to UL/CSA, TUV, CB
PTT: FCC-Part 68, CTR 21
MDA2005 Compliant

Software Utility
Phoenix First BIOS
Phoenix First BIOS
Suspend to DRAM/HDD

Security:
TPM
Power-On Password, Supervisor Password
HDD password
USB memory Boot support
Support SMBIOS 2.3, PCI2.2
Support PXE
Wake on LAN from S3
Wake on LAN form S4 in AC mode
